毕业设计做了下语义分割相关的东西，主要是根据U-Net网络架构，并附加了一些残差卷积的变化。

数据集

数据集为来自kaggle上盐体分割比赛的图像集，图片大小为101*101像素，目标为将原图像中含盐的区域分割出来。由于总共为4000张图片，为轻量级图像，经试验，选取训练集：验证集：测试集比例为6：2：2

U-Net结构

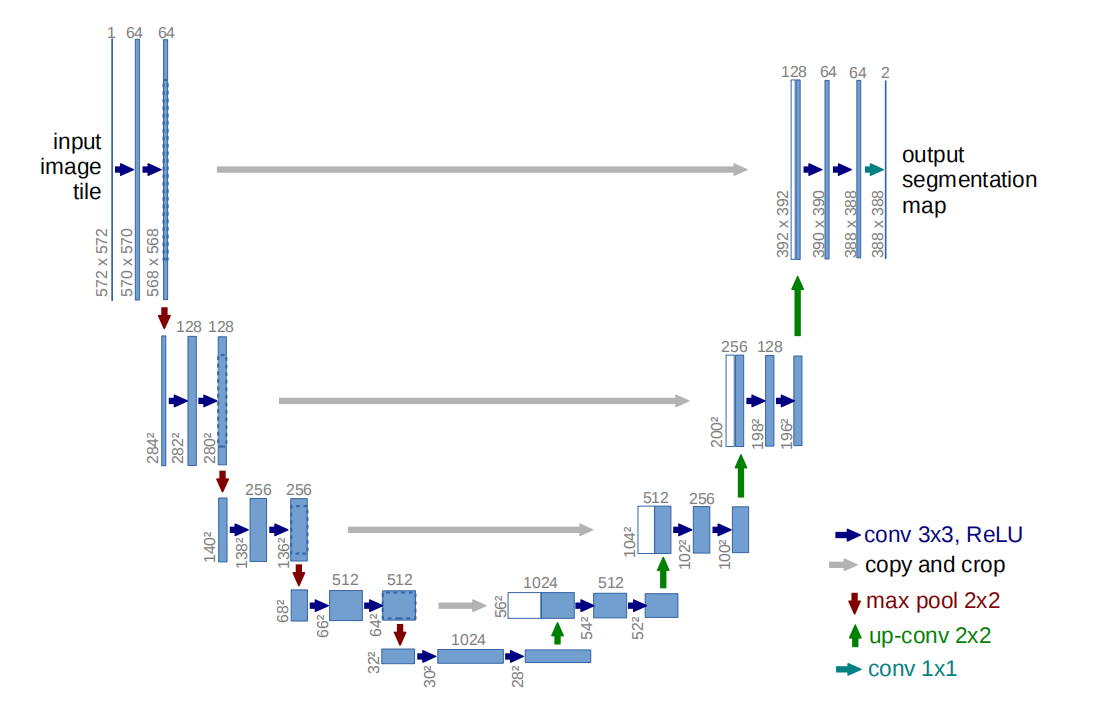

标准的U-Net网络结构如图所示

标准网络结构
标准网络结构

网络结构为U型，左侧为压缩路径，右侧为拓展路径。实际在实验中，为了方便计算将输入大小调整为128*128，且左右两侧对应层的大小一致（论文中的标准结构左侧的需要裁剪后才能拼接至右侧）。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
inputs = Input(input_size)
conv1 = Conv2D(64, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(inputs)
conv1 = Conv2D(64, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv1)
pool1 = MaxPooling2D(pool_size=(2, 2))(conv1)
# 128->64
conv2 = Conv2D(128, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(pool1)
conv2 = Conv2D(128, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv2)
pool2 = MaxPooling2D(pool_size=(2, 2))(conv2)
# 64->32
conv3 = Conv2D(256, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(pool2)
conv3 = Conv2D(256, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv3)
pool3 = MaxPooling2D(pool_size=(2, 2))(conv3)
# 32->16
conv4 = Conv2D(512, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(pool3)
conv4 = Conv2D(512, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv4)
drop4 = Dropout(0.5)(conv4)
pool4 = MaxPooling2D(pool_size=(2, 2))(drop4)
# 16->8

conv5 = Conv2D(1024, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(pool4)
conv5 = Conv2D(1024, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv5)
drop5 = Dropout(0.5)(conv5)

up6 = Conv2D(512, 2, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(UpSampling2D(size = (2,2))(drop5))
merge6 = concatenate([drop4,up6], axis = 3)
conv6 = Conv2D(512, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(merge6)
conv6 = Conv2D(512, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv6)

up7 = Conv2D(256, 2, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(UpSampling2D(size = (2,2))(conv6))
merge7 = concatenate([conv3,up7], axis = 3)
conv7 = Conv2D(256, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(merge7)
conv7 = Conv2D(256, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv7)

up8 = Conv2D(128, 2, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(UpSampling2D(size = (2,2))(conv7))
merge8 = concatenate([conv2,up8], axis = 3)
conv8 = Conv2D(128, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(merge8)
conv8 = Conv2D(128, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv8)

up9 = Conv2D(64, 2, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(UpSampling2D(size = (2,2))(conv8))
merge9 = concatenate([conv1,up9], axis = 3)
conv9 = Conv2D(64, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(merge9)
conv9 = Conv2D(64, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv9)
conv9 = Conv2D(2, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv9)
conv10 = Conv2D(1, 1, activation = 'sigmoid')(conv9)

model = Model(inputs = inputs, outputs = conv10)

对于网络的目标函数，采用交并比IOU

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
def get_iou_vector(A, B):
    # Numpy version
    batch_size = A.shape[0]
    metric = 0.0
    for batch in range(batch_size):
        t, p = A[batch], B[batch]
        true = np.sum(t)
        pred = np.sum(p)

        # deal with empty mask first
        if true == 0:
            metric += (pred == 0)
            continue

        # non empty mask case.  Union is never empty
        # hence it is safe to divide by its number of pixels
        intersection = np.sum(t * p)
        union = true + pred - intersection
        iou = intersection / union

        # iou metrric is a stepwise approximation of the real iou over 0.5
        iou = np.floor(max(0, (iou - 0.45) * 20)) / 10

        metric += iou

    # teake the average over all images in batch
    metric /= batch_size
    return metric

def my_iou_metric(label, pred):
    # Tensorflow version
    return tf.py_func(get_iou_vector, [label, pred > 0.5], tf.float64)

残差卷积

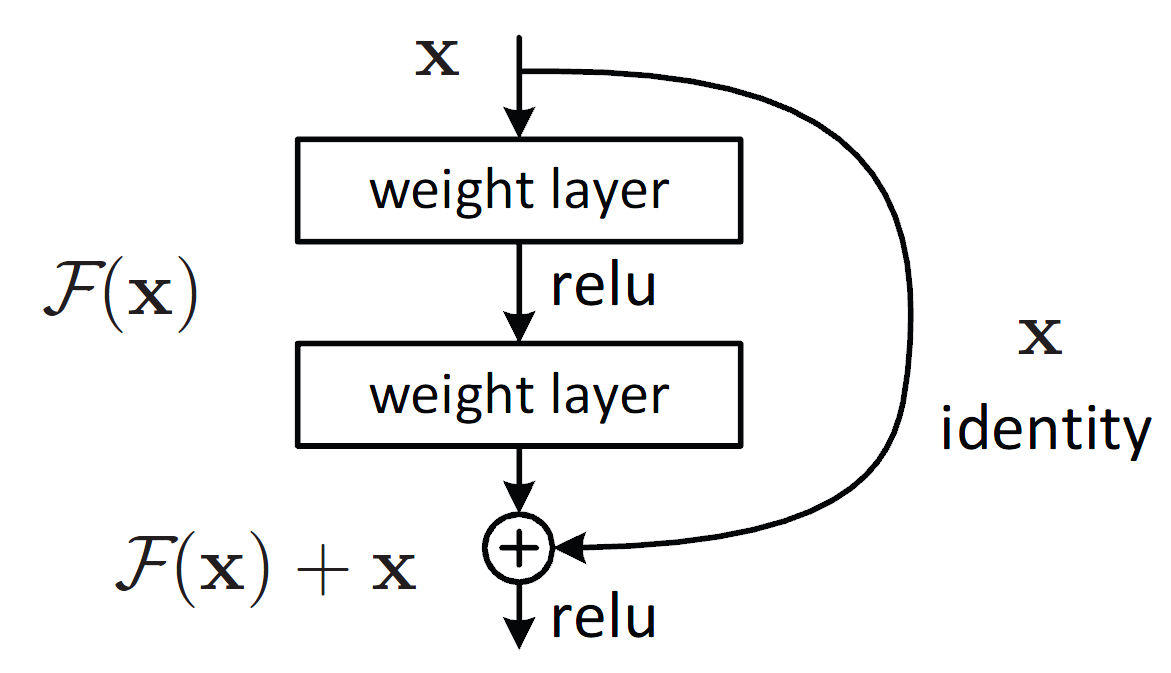

为了提高分割准确度，在原有模型基础上引入残差卷积的模块，

残差卷积
残差卷积

即为将前面层的输入与后面的输出直接相加作为模块的输出，结合得到的ResUnet结构示例如下：
ResUnet
ResUnet

数据增强

在实验中采用imgaug框架进行数据增强的相关操作，比对后，对图像数据集采用1：1的扩充比，同时选取镜像变换作为主要增强手段

实验代码
